Screw-Type DIN Rail Terminal Block

Description

Dena Electric Iranian screw-type DIN rail terminal blocks are widely used in industrial electrical panels and control systems. They are designed to provide safe, organized, and reliable wire connections on DIN rails. These terminal blocks are manufactured in accordance with IEC 60947-7-1, which specifies the requirements for terminal blocks for copper conductors in low-voltage equipment. Their housings are made of durable polyamide, and they are available in various sizes to accommodate wires with different cross-sectional areas.

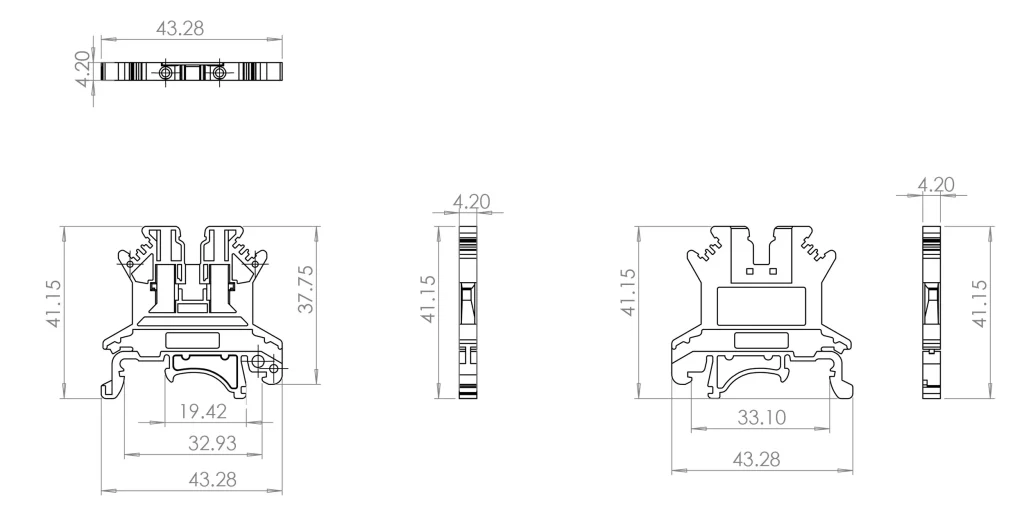

1.5 mm² DIN Rail Terminal Block for Electrical Panels

The Dena Electric Iranian 1.5 mm² screw-type DIN rail terminal block is designed for connecting small cross-section wires used in command, signal, and control circuits. This model has a rated voltage of 500 V and a rated current of 17.5 A, and it can withstand a maximum current of 24 A.

Its dimensions are as follows: length (A) 43 mm, width (B) 32 mm, and height (C) 19 mm. The mounting height on the rail (D) is 41 mm, while the height of the clamp or connection section (H) is 4 mm.

This panel terminal block supports wires with a maximum cross-sectional area of 2.5 mm². Thanks to its compact dimensions, it is a suitable choice for control panels, automation systems, and electrical circuits where space is limited.

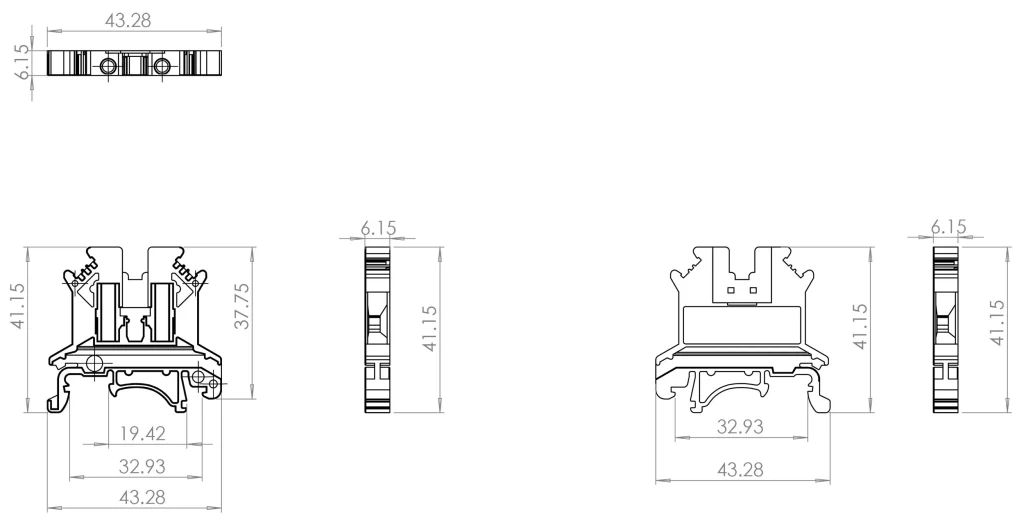

2.5 mm² Screw-Type DIN Rail Terminal Block

The Dena Electric Iranian 2.5 mm² screw-type DIN rail terminal block is one of the most commonly used models in industrial electrical panels. It is suitable for connecting control and power circuit wires carrying medium-level currents.

Manufactured in accordance with IEC 60947-7-1, this model has a rated voltage of 500 V and a rated current of 24 A. It can withstand a maximum current of 32 A and accommodates wires with a maximum cross-sectional area of 4 mm².

Its dimensions are 43 mm in length, 32 mm in width, and 19 mm in height, with a mounting height of 41 mm. The connection section has a height of 6 mm. Its housing is made of durable polyamide, offering resistance to heat and environmental conditions.

Due to its wide range of applications, the Dena Electric 2.5 mm² panel terminal block is a suitable choice for power distribution panels, PLC panels, industrial control equipment, and automation systems.

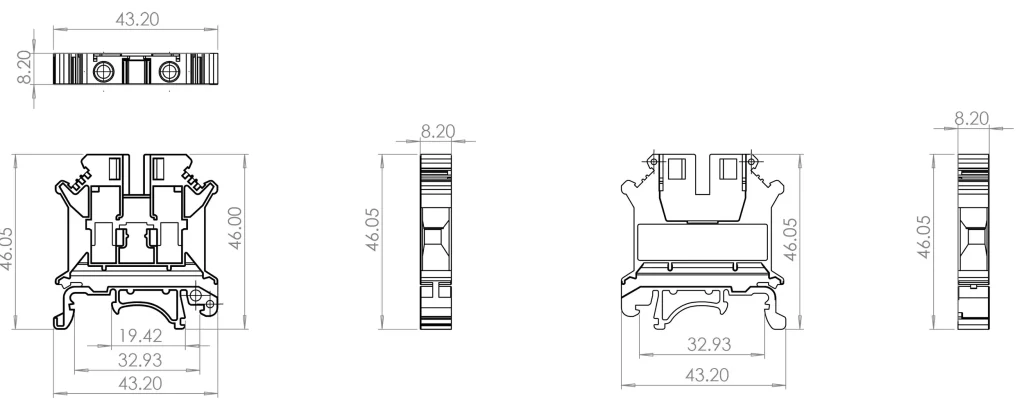

4 mm² DIN Rail Terminal Block

The Dena Electric Iranian 4 mm² DIN rail terminal block is designed for circuits requiring higher current capacity than the 1.5 mm² and 2.5 mm² models. It has a rated voltage of 800 V and is suitable for industrial applications and low-voltage electrical panels.

The rated current is 32 A, and the maximum permissible current is 41 A. These specifications make it suitable for connecting wires and cables with larger cross-sectional areas in power circuits and equipment supply lines.

Its dimensions are 43 mm in length, 32 mm in width, and 19 mm in height, with a mounting height of 46 mm. The connection section (H) is 6 mm high, and the terminal accommodates wires with a maximum cross-sectional area of 6 mm².

The polyamide housing provides suitable resistance to heat, impact, and the operating conditions found in industrial environments, helping extend the service life of the equipment.

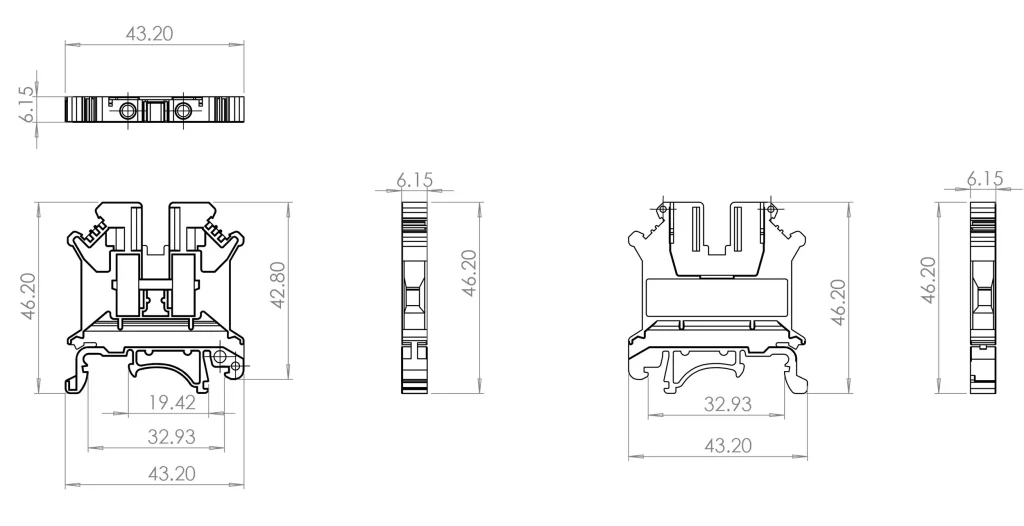

6 mm² DIN Rail Terminal Block for Electrical Panels

The Dena Electric Iranian 6 mm² screw-type DIN rail terminal block is designed for power circuits, distribution panels, and industrial equipment that require higher current capacity.

This terminal block has a rated voltage of 800 V, a rated current of 41 A, and a maximum permissible current of 57 A. It accommodates wires with a maximum cross-sectional area of 10 mm², making it suitable for wiring higher-power equipment.

Its dimensions are 43 mm in length, 32 mm in width, and 19 mm in height, with a mounting height of 46 mm. The connection section is 8 mm high, and its design allows for easy installation on standard DIN rails.

Thanks to its high current capacity, this model is widely used in industrial electrical panels, machinery, motor control center (MCC) panels, and power distribution systems.

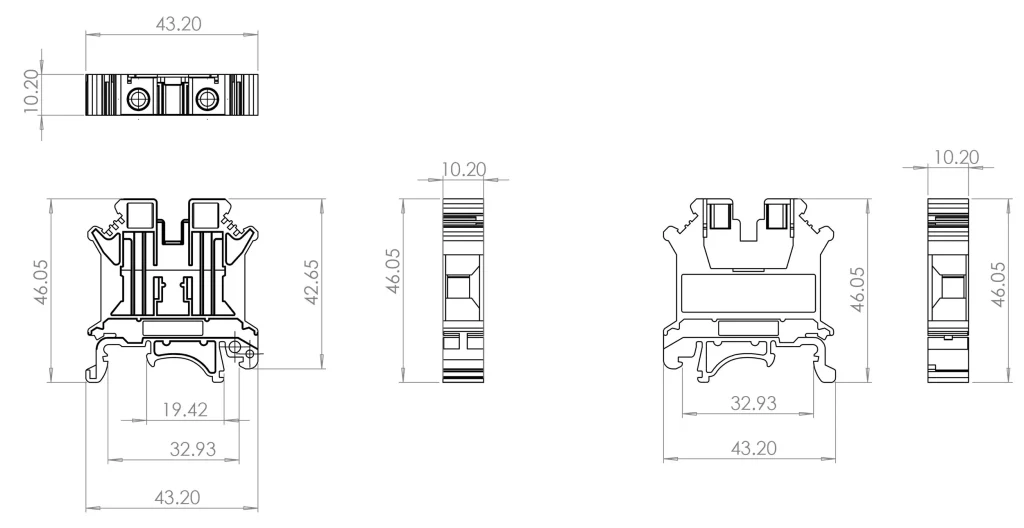

10 mm² DIN Rail Terminal Block

The Dena Electric Iranian 10 mm² screw-type DIN rail terminal block is the largest size in this series and is designed for connecting wires with larger cross-sectional areas in power circuits.

This model has a rated voltage of 800 V, a rated current of 57 A, and a maximum permissible current of 76 A. It accommodates wires with a maximum cross-sectional area of 16 mm², making it suitable for more demanding industrial applications.

Its dimensions are 43 mm in length, 32 mm in width, and 19 mm in height, with a mounting height of 46 mm. The connection section (H) is 10 mm high, providing sufficient space for thicker wires.

The high-quality polyamide housing provides effective insulation and good thermal resistance, helping ensure reliable performance in industrial environments.

Dena Electric Iranian is a specialized manufacturer of electrical panel accessories in Iran. Focusing on the design and production of DIN rail terminal blocks, terminal block end covers, and terminal end stops (end clamps), the company offers quality products tailored to the needs of the electrical, automation, and control industries.

Dena Electric Iranian screw-type DIN rail terminal blocks are manufactured using high-quality raw materials and a standardized design for use in industrial electrical panels, control panels, control systems, and automation equipment. These products are designed to provide safe, stable, and organized electrical connections in panel wiring, making them a suitable choice for industrial and professional projects.

High manufacturing quality, precision, and adherence to technical standards have established Dena Electric Iranian products as a reliable solution for professional electrical panel wiring. With a focus on technological development and modern products, the company continues to work toward a smarter future for the electrical industry—a modern future, the Dena way.
